Analog Devices EVAL-HMC7044 Evaluation Board

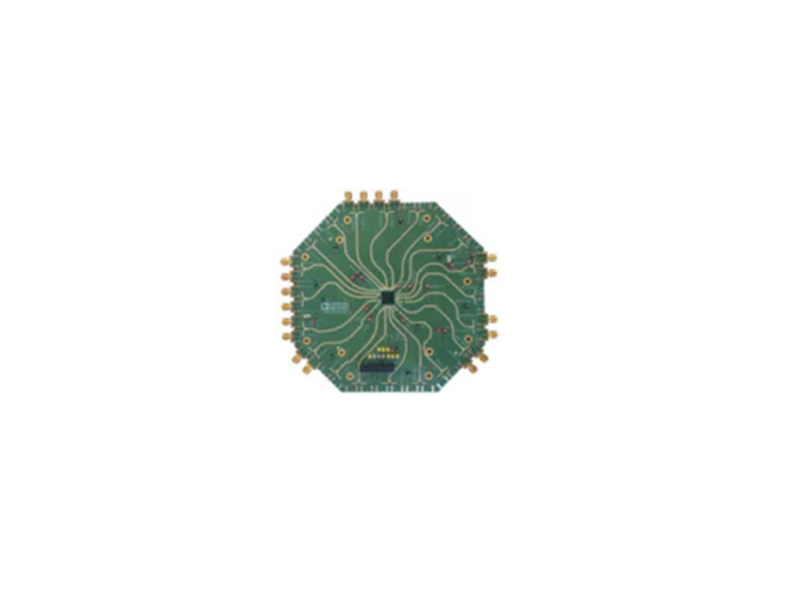

Picture for category Analog Devices EVAL-HMC7044 Evaluation Board

13 June 2018

Analog Devices EVAL-HMC7044 evaluation board is designed as a compact, easy-to-use platform for evaluating the features of the HMC7044 Jitter Attenuators. The evaluation board features on-board LDO voltage regulators, PLL loop filter, SMA connectors, and status LEDs for diagnostic signals. In addition, the evaluation board includes a 122.88MHZ voltage controlled oscillator (VCXO) to provide a complete solution. All inputs and outputs are configured as differential on the evaluation board.

Features

- Simple power connection using USB connection and on-board LDO voltage regulators

- LDOs can be bypassed for power measurements

- AC-coupled differential SMA connectors

- SMA connectors for

          - 2 reference inputs

            - 6 clock outputs

              - 1 VCXO output

        - Microsoft Windows®-based evaluation software with simple graphical user interface

        - On-board PLL loop filter

        - Easy access to digital input/output and diagnostic signals via input/output header (4 GPIOs)

        - Status LEDs for diagnostic signals USB computer interface
