Ürün Özellikleri Listesi
Product Features	Özellik İçeriği	Tümü
Manufacturer	Epcos - A TDK Group Company‎	Manufacturer
Series	B66319	Series
Part Status	Active	Part Status
Material	N87	Material

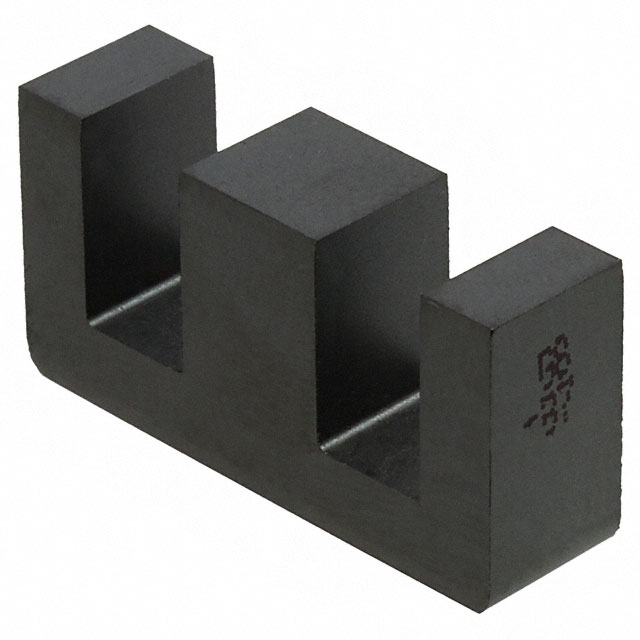

Core Type	E	Core Type
Core Factor (ΣI/A) mm-1	1.12	Core Factor (ΣI/A) mm-1
Core Factor (ΣI/A) mm1	-	Core Factor (ΣI/A) mm1
Inductance Factor (Al)	1900	Inductance Factor (Al)
Tolerance	-20%, +30%	Tolerance
Effective Permeability (µe)	1690	Effective Permeability (µe)
Initial Permeability (µi)	-	Initial Permeability (µi)
Effective Length (le) mm	67	Effective Length (le) mm
Effective Area (Ae) mm²	60	Effective Area (Ae) mm²
Effective Magnetic Volume (Ve) mm³	4000	Effective Magnetic Volume (Ve) mm³
Minimum Core Cross Section (Amin) mm²	49	Minimum Core Cross Section (Amin) mm²
Length	30.00mm	Length
Width	7.30mm	Width
Height	15.20mm	Height
Diameter	-	Diameter
Gap	Ungapped	Gap
Finish	Uncoated	Finish
Supplier Device Package	E 30 x 15 x 7	Supplier Device Package
