CLX6E-FKC-CHNPMPDGBB79363 Hakkında

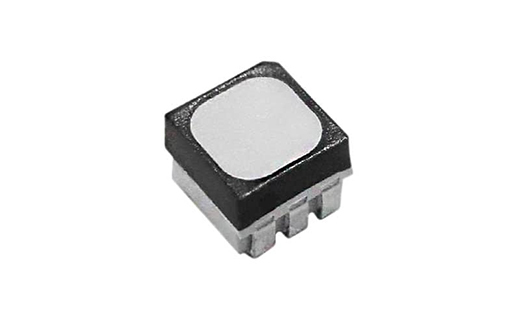

Picture of Standard LEDs - SMD Full Rank, Tape & Reel
* Picture is displayed for introductory purpose. There might be differences with the original product
Araçlar
  • Ürün Fiyatı
  • Ürün Özellikleri
Ürün Özellikleri Listesi
Product Features Özellik İçeriği
Manufacturer CreeLED, Inc.
Series CLX6E-FKC
Color Red, Green, Blue (RGB)
Lens Style/Size Square with Flat Top
Voltage - Forward (Vf) (Typ) 2V Red, 2.8V Green, 3V Blue
Millicandela Rating 580mcd Red, 1055mcd Green, 248mcd Blue
Current - Test 15mA Red, 10mA Green, 10mA Blue
Wavelength - Dominant 622nm Red, 533nm Green, 473nm Blue
Mounting Type Surface Mount
Package / Case 6-SMD, J-Lead
Size / Dimension 3.40mm L x 3.40mm W
Height (Max) 2.90mm
Packaging Tape & Reel (TR)
Supplier Device Package 6-PLCC
Configuration Independent
Features IPX8
Filter

Total Stock : 0 Quantity Teklif Al
